A109GMX025XB3

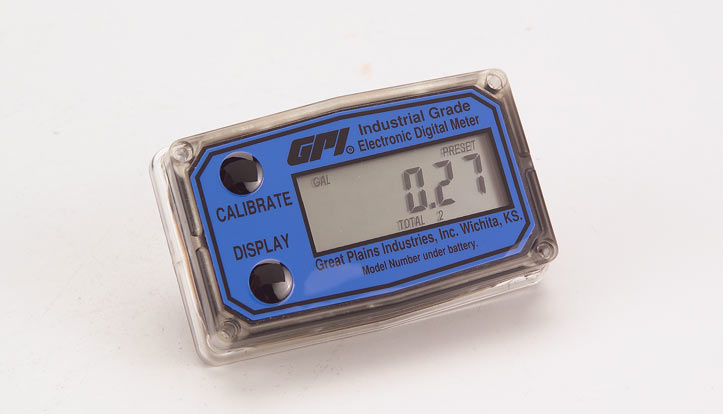

09 Computer Display for A1 1" Low Flow Aluminum or Nylon Body (.3-3 GPM)
(See new model A1R9GMX025XB3)
Features & Benefits
- Kit consists of Computer Display, batteries, O'ring seal, gasket, screws, manual and declaration of conformity
- Fits A1 Aluminum or Nylon bodies only. Replaces LCD computer display labeled A10GMA025NA1, A109GMN025NA1, A109LMA025NA1, A109LMN025NA1 or A109GMX025XB3
- LCD Computer Display programmed to display in Gallons Per Minute. Flowrate display updates every 5 seconds, readout is in units/minute. Factory Calibration in gallons and liters is standard. Can be field calibrated to adjust to various fluid viscosities. Correction calibration lets end user calibrate by +/- percent off.
- Internal Power: (2) 3V Lithium batteries. Battery life (5 years); Std Factory Configuration: 2 Totals (1 Resettable, 1 Cumulative); Factory Calibration in gallons and liters; Totalizing Registers: 0 to 2; K-Factor Limits: Min: .01 pulses/unit Max: 999,999 pulses/unit; Field Calibrate by user. Standard Method: Correction Factor. Six adjustable digits. Can be reconfigured to K-factor entry; Readouts: LCD with floating decimal Minimum Display = 0.01 units Maximum Display = 999,999 units (6 digits); Impulse Rate: Minimum (Pulse-in Input) = DC (0 Hz) Minimum (Coil Input) = Approximately 10 Hz Maximum = Approximately 1,000 Hz; Storage Temperature: -40 F to 158 F (-40 C to 70 C); Note: Part number is dependent on material and size of flow meter.
0 F to 140 F (-18 C to 60 C)
