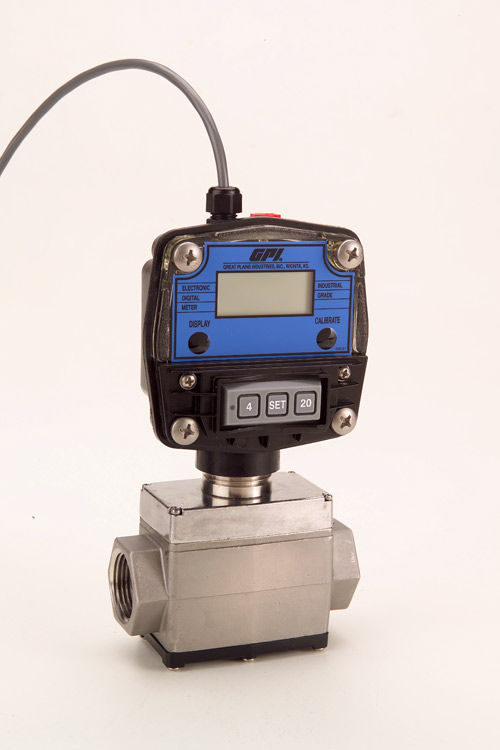

G2H07N-GX510
3/4" NPT Female 316SS (see new model)
Search for model G2H07NQ9GMA
Rate & Totals + 4-20mA Output G2 Series - INDUSTRIAL GRADE METER - HIGH PRESSURE
Main Specifications
Connection Size: 3/4"
Connection Type: NPT Female
Pressure Rating: 3000 PSI (207 Bar)
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C)
Flow Range: 2 - 20 GPM (7.6 - 75.7 LPM)
See new model
G2H07NQ9GMV
See new model
G2H07NQ9GMV
Meter Body Size: 3/4"
Body Type: High Pressure
Local/Remote Display: Local
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Flow Meter Type: G2 Series - INDUSTRIAL GRADE METER - HIGH PRESSURE
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Rate & Totals + 4-20mA Output
Benefits & Features: High Pressure Rated (3000 PSI), Excellent Chemical Compatibility, Accurate, Durable, 6 Digit Display - Floating Decimal, Rate of Flow, Batch & Cumulative Totals, Factory Calibrated and Field Calibratable, Add-On Output Options, Replaceable Internal Meter Body Parts, Choice of Gallons or Liters, Easier to program 4-20mA Output than the 125100-1 Module, Custom Programmable Display (including UOM)
Extended Flow Range: 20 - 30 GPM (75.7 - 113.6 LPM)*
Max Pressure Drop (at Max Flow in test conditions): 5.2 PSI
Accuracy (% of Reading) Factory Calibrated with Computer: ± 1.0%
Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.5%
Repeatability (based on test conditions): ± 0.1%
Maximum Viscosity: 100 cps**
Recommended Strainer Size: 120 Mesh (125 Microns)
Max. Particle Size: .005" / .127 mm
Operating Temp Without Local Computer or With Remote Computer: -40 to 212°F (-40 to 100°C) [Opt'l]
Housing Material: 316SS (see new model) <br><br>Search for model G2H07NQ9GMA
Bearings: 96% Alumina Ceramic/Tungsten Carbide
Shaft: Tungsten Carbide
Rotor: PVDF
Signal Generator: Not Wetted
Retaining Rings: 316SS
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Typical K-Factor PPG (PPL): 565 (149)
Local Module & Output Signal: 4-20mA Transmitter
Remote Output: None
Sensor (Pickup): Magnetic
External Power: 2-Wire Loop Powered 8.5-35 VDC
Frequency Range: 47 - 470 Hz
Totalizing Resets to 0 After Reaching: 99999999
Applications (always check Chemical Compatibility Guide): High Press Water Spray Washers and Hydraulic Systems, Chemicals, Fuel Products
Not Suitable For Applications: DI Water; Oils, especially those heavier than 10W (100cps), Fluctuating viscosities**
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds
Minimum Straight Pipe Dia.s: 7.5" Upstream / 3.75" Downstream
Desired Straight Pipe Dia.s: 14" Upstream / 7.5" Downstream
Connection to Connection Length (OAL): 4.3" (109 mm)
Shipping Weight (Approximate): 4.4 lbs (2.0 kg)
Approvals Notes: Not available with FM approval
