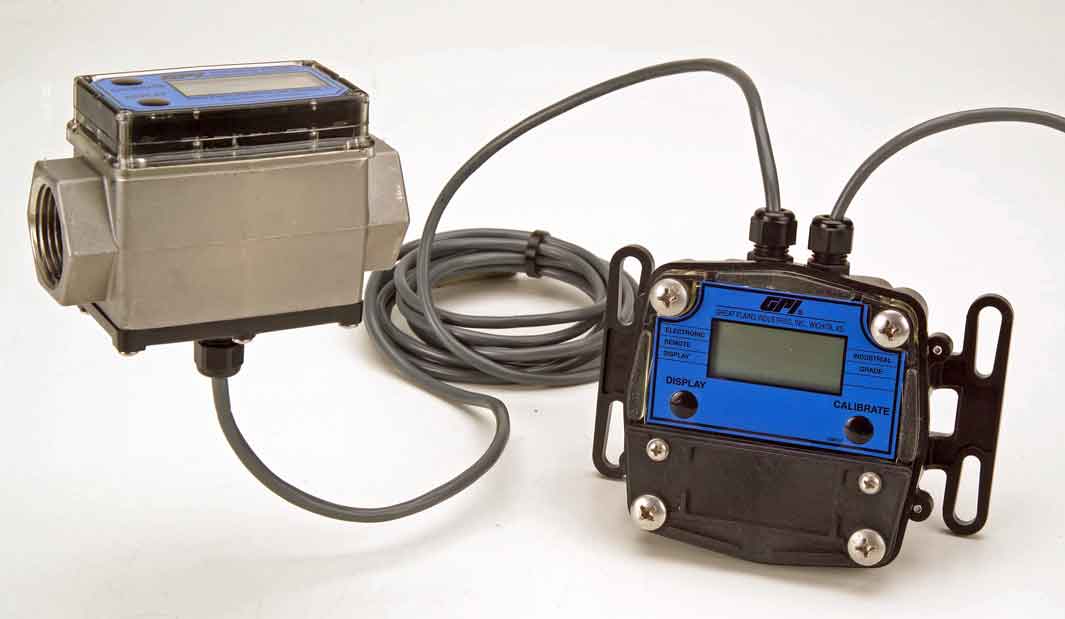

G2S05N53GMC
1/2" NPT Female 316SS (see new model)
Reference G2S05NQ9GMA
Local & Remote Rate & Totals G2 Series - INDUSTRIAL GRADE METER
Main Specifications
Connection Size: 1/2"
Connection Type: NPT Female
Flow Range: 1 - 10 GPM (3.8 - 37.9 LPM)
Contact us for new model
Reference G2S05NQ9GMA
Contact us for new model
Reference G2S05NQ9GMA
Pressure Rating: 1500 PSI (102 Bar)
Operating Temp With Local Computer: 14°F to 140°F (-10°C to 60°C)
Meter Body Size: 1/2"
Local/Remote Display: Both
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Flow Meter Type: G2 Series - INDUSTRIAL GRADE METER
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Local & Remote Rate & Totals
Benefits & Features: Pressure Rated to 1500 PSI, Excellent Chemical Compatibility, Accurate, Durable, Local Display 5-Year Battery Powered, 6 Digit Displays - Floating Decimal, Rate of Flow, Batch & Cumulative Totals, Factory Calibrated and Field Calibratable, Add-On Output Options, Replaceable Internal Meter Body Parts, Choice of Gallons or Liters, Custom Programmable Displays including UOM
Extended Flow Range: 10 - 15 GPM (37.8 - 56.8 LPM)*
Max Pressure Drop (at Max Flow in test conditions): 7.5 PSI
Accuracy (% of Reading) Factory Calibrated with Computer: ± 1.5%
Accuracy (% of Reading) Factory Calibrated Body Only: ± 2.0%
Repeatability (based on test conditions): ± 0.1%
Maximum Viscosity: 100 cps**
Recommended Strainer Size: 120 Mesh (125 Microns)
Max. Particle Size: .005" / .127 mm
Operating Temp Without Local Computer or With Remote Computer: 0 to 140°F (-18 to 60°C)
Housing Material: 316SS (see new model)<br><br>Reference G2S05NQ9GMA
Bearings: 96% Alumina Ceramic/Tungsten Carbide
Shaft: Tungsten Carbide
Rotor: PVDF
Signal Generator: Not Wetted
Retaining Rings: 316SS
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Typical K-Factor PPG (PPL): 2500 (660)
Remote Output: Open Collector (NPN) Unscaled Pulse (GG500)
Sensor (Pickup): Magnetic
Battery Power: (2) 3V Lithium Battery (5 year)
External Power: 7-30 VDC
Frequency Range: 42 - 420 Hz
Totalizing Resets to 0 After Reaching: 99999999
Applications (always check Chemical Compatibility Guide): Water, Chemicals, Fuel Products
Not Suitable For Applications: DI Water; Oils, especially those heavier than 10W (100cps), Fluctuating viscosities**
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds
Minimum Straight Pipe Dia.s: 5" Upstream / 2.5" Downstream
Desired Straight Pipe Dia.s: 10" Upstream / 5" Downstream
Connection to Connection Length (OAL): 4.2" (107 mm)
Shipping Weight (Approximate): 4.3 lbs (2.0 kg)
