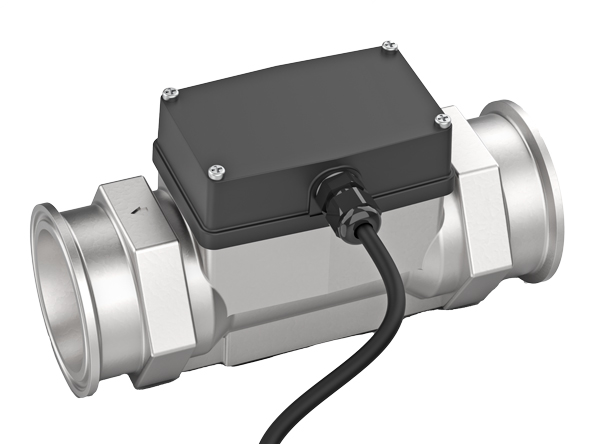

G2S07TPOXXX 316SS Flow Meter 1"Tri-Clamp Pulse Out Only
1" (3/4" Meter Body Size) Tri-Clamp
Pulse Out
$1061.00
Main Specifications
Connection Size: 1" (3/4" Meter Body Size)
Connection Type: Tri-Clamp
Flow Range: 2 - 20 GPM (7.6 - 75.7 LPM)
Operating Temp With Local Computer:
0 to 140°F (-18 to 60°C) for SAFE AREA ONLY (Non-FM Approved)
See Catalog Page link to the left
0 to 140°F (-18 to 60°C) for SAFE AREA ONLY (Non-FM Approved)
See Catalog Page link to the left
Body Type: Non 3-A
Local/Remote Display: Pulse Out Only - No Display
Display Type: Pulse Out Only - No Display
Factory Calibrated For: Water like fluids
Product Type: Pulse Out
Std Calibration Reports Included: Yes
Benefits & Features: Excellent Chemical Compatibility; Accurate; Durable; Replaceable Internal Meter Body Parts; Unscaled NPN Open Collector Pulse
Max Pressure Drop (at Max Flow in test conditions): 5.2 PSI
Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.5%
Repeatability (based on test conditions): ± 0.1%
Recommended Strainer Size: 120 Mesh (125 Microns)
Max. Particle Size: .005" / .127 mm
Operating Temp Without Local Computer or With Remote Computer: -40 to 250°F (-40 to 121°C) [Opt'l]
Extended Flow Range: 20 - 30 GPM (75.7 - 113.6 LPM)<br>[Accuracy of the extended flow range declines and is not guaranteed]<br>Overranging damages meter and voids warranty
Maximum Viscosity: 100 cps<br>[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]
Bearings: 96% Alumina Ceramic/Tungsten Carbide
Shaft: Tungsten Carbide
Rotor: PVDF
Signal Generator: Not Wetted
Retaining Rings: 316SS
Typical K-Factor PPG (PPL): 1100 (291)
Sensor (Pickup): Magnetic
Battery Power: None
External Power: Requires 5VDC to 26VDC
Frequency Range: 37 - 370 Hz
Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line should be kept full (no air) for proper accuracy
Piping Notes: If cavitation affects accuracy, try a flow control valve downstream of meter
Connection to Connection Length (OAL): 5.0" (127 mm)
Shipping Weight (Approximate): 2.9 lbs (1.3 kg)
Approvals Notes: For 3-A Approved Meters please see GSCPS meters
