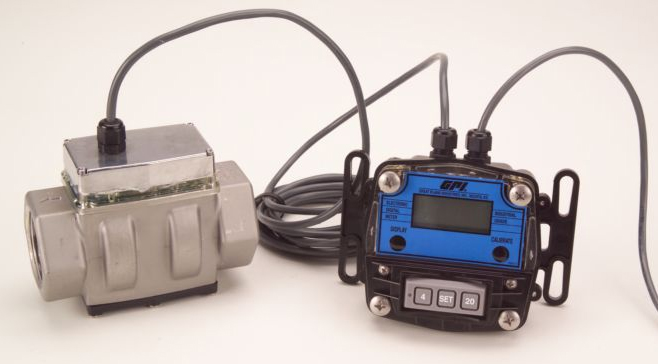

G2S15N62GMC
1-1/2" NPT Female 316SS (see new model)
Reference G2S15NQ9GMB
Remote Rate & Totals + 4-20mA Output G2 Series - INDUSTRIAL GRADE METER
Main Specifications
Connection Size: 1-1/2"
Connection Type: NPT Female
Flow Range: 10 - 100 GPM (38.0 - 380 LPM)
Contact us for new model
Reference G2S15NQ9GMB
Contact us for new model
Reference G2S15NQ9GMB
Pressure Rating: 1500 PSI (102 Bar)
Operating Temp With Local Computer: -40°F to 212°F (-40°C to 100°C)
Meter Body Size: 1-1/2"
Local/Remote Display: None
Display Type: None
Factory Calibrated For: Water like fluids
Flow Meter Type: G2 Series - INDUSTRIAL GRADE METER
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Remote Rate & Totals + 4-20mA Output
Benefits & Features: Pressure Rated to 1500 PSI, Excellent Chemical Compatibility, Accurate, Durable, 6 Digit Display - Floating Decimal, Rate of Flow, Batch & Cumulative Totals, Factory Calibrated and Field Calibratable, Add-On Output Options, Replaceable Internal Meter Body Parts, Choice of Gallons or Liters, Custom Programmable Display (including UOM)
Extended Flow Range: 100 - 150 GPM (380 - 568 LPM)*
Max Pressure Drop (at Max Flow in test conditions): 3.8 PSI
Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.75%
Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.0%
Repeatability (based on test conditions): ± 0.1%
Maximum Viscosity: 100 cps**
Recommended Strainer Size: 35 Mesh (500 Microns)
Max. Particle Size: .018" / .457 mm
Operating Temp Without Local Computer or With Remote Computer: -40 to 212°F (-40 to 100°C)
Housing Material: 316SS (see new model)<br><br>Reference G2S15NQ9GMB
Bearings: 96% Alumina Ceramic/Tungsten Carbide
Shaft: Tungsten Carbide
Rotor: PVDF
Signal Generator: Not Wetted
Retaining Rings: 316SS
Local Computer Calibrations: Factory
Typical K-Factor PPG (PPL): 215 (57)
Local Module & Output Signal: 4-20mA Transmitter
Remote Output: None
Sensor (Pickup): Magnetic
External Power: 2-Wire Loop Powered 8.5-35 VDC
Frequency Range: 36 - 360 Hz
Applications (always check Chemical Compatibility Guide): Water, Chemicals, Fuel Products
Not Suitable For Applications: DI Water; Oils, especially those heavier than 10W (100cps), Fluctuating viscosities**
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds
Minimum Straight Pipe Dia.s: 15" Upstream / 7.5" Downstream
Desired Straight Pipe Dia.s: 30" Upstream / 15" Downstream
Connection to Connection Length (OAL): 5.3" (135 mm)
Shipping Weight (Approximate): 7.1 lbs (3.2 kg)
