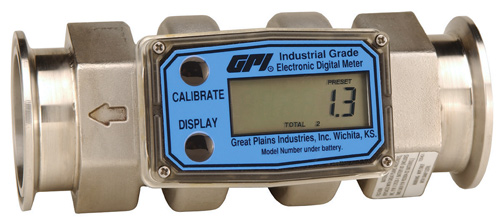

G2S20T09GMB GPI 2-1/2" Tri-Clamp 316SS Turbine Industrial Water Flow Meter
2-1/2" (2" Meter Body Size) Tri-Clamp 316SS (see new model)
Search for model G2S20TQ9GMB
Rate & Totals G2 Series - INDUSTRIAL GRADE METER
Main Specifications
Connection Type: Tri-Clamp
Flow Range: 20 - 200 GPM (76 - 760 LPM)
See new model
G2S20TQ9GMB
See new model
G2S20TQ9GMB
Pressure Rating: 150 PSI (10.2 Bar)
Operating Temp With Local Computer: 14°F to 140°F (-10°C to 60°C)
Connection Size: 2-1/2" (2" Meter Body Size)
Meter Body Size: 2"
Body Type: Non 3-A
Local/Remote Display: Local
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Flow Meter Type: G2 Series - INDUSTRIAL GRADE METER
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Rate & Totals
Benefits & Features: Excellent Chemical Compatibility; Accurate; Durable; 5-Year Battery Powered; 6 Digit Display - Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Factory Calibrated and Field Calibratable; Add-On Output Options; FM Approved Class I, Div. I; Replaceable Internal Meter Body Parts; Choice of Gallons or Liters; Custom Programmable Display (including UOM)
Extended Flow Range: 200 - 300 GPM (760 - 1136 LPM)*
Max Pressure Drop (at Max Flow in test conditions): 4.7 PSI
Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.75%
Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.0%
Repeatability (based on test conditions): ± 0.1%
Maximum Viscosity: 100 cps**
Recommended Strainer Size: 35 Mesh (500 Microns)
Max. Particle Size: .018" / .457 mm
Operating Temp Without Local Computer or With Remote Computer: -40 to 250°F (-40 to 121°C) [Opt'l]
Housing Material: 316SS (see new model) <br><br>Search for model G2S20TQ9GMB
Bearings: 96% Alumina Ceramic/Tungsten Carbide
Shaft: Tungsten Carbide
Rotor: PVDF
Signal Generator: Not Wetted
Retaining Rings: 316SS
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Typical K-Factor PPG (PPL): 100 (26)
Local Module & Output Signal: None
Remote Output: Optional Remote Display, 4-20mA or Pulse Out (Please contact us)
Sensor (Pickup): Magnetic
Battery Power: (2) 3V Lithium Battery (5 year)
Frequency Range: 33 - 330 Hz
Totalizing Resets to 0 After Reaching: 99999999
Applications (always check Chemical Compatibility Guide): Beer, Wine, Beverages, Chemicals, Water
Not Suitable For Applications: DI Water; Oils, especially those heavier than 10W (100cps), Fluctuating viscosities**
Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds
Minimum Straight Pipe Dia.s: 20" Upstream / 10" Downstream
Desired Straight Pipe Dia.s: 40" Upstream / 20" Downstream
Connection to Connection Length (OAL): 7.0" (178 mm)
Shipping Weight (Approximate): 6.5 lbs (2.9 kg)
Approvals Notes: For 3-A Approved Meters please see GSCPS meters
