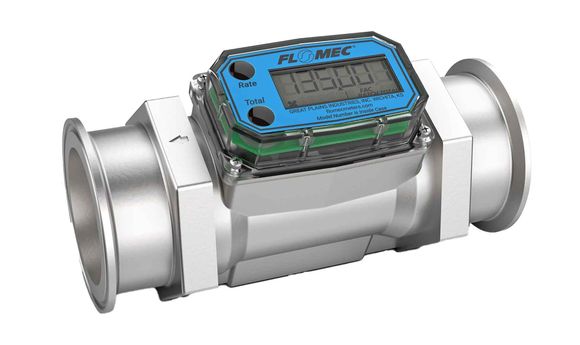

G2S20TQ9GMB 2-1/2" Tri-Clamp 316SS Industrial Grade Electronic Meter
2-1/2" (2" Meter Body Size) Tri-Clamp 316SS
Rate & Totals G2 Series - INDUSTRIAL GRADE METER
$1765.00
Main Specifications
Connection Type: Tri-Clamp
Flow Range: 20 - 200 GPM (76 - 760 LPM)
Pressure Rating: 150 PSI (10.2 Bar)
Connection Size: 2-1/2" (2" Meter Body Size)
Operating Temp With Local Computer:
0 to 140°F (-18 to 60°C) for SAFE AREA (Non-FM Approved)
0 to 129°F (-18 to 54°C) for INTRINSICALLY SAFE (FM Approved)
See Catalog Page link to the left
0 to 140°F (-18 to 60°C) for SAFE AREA (Non-FM Approved)
0 to 129°F (-18 to 54°C) for INTRINSICALLY SAFE (FM Approved)
See Catalog Page link to the left
Meter Body Size: 2"
Body Type: Non 3-A
Local/Remote Display: Local
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Flow Meter Type: G2 Series - INDUSTRIAL GRADE METER
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Rate & Totals
Benefits & Features: Excellent Chemical Compatibility; Accurate; Durable; 2-Year Battery Powered; 6 Digit Display - Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Factory Calibrated and Field Calibratable; Add-On Output Options; FM Approved Class I, Div. I; Replaceable Internal Meter Body Parts; Choice of Gallons or Liters; Custom Programmable Display (including UOM)
