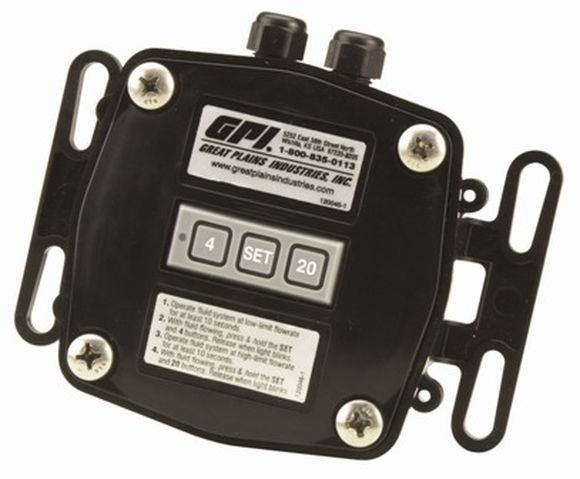

GA500
Remote 4-20mA Transmitter 9
(Discontinued - Contact us for replacements)
Features & Benefits
- Remote mount 4-20mA Output Transmitter without Display
- Works with the G, G2, and OM Series Flowmeters. (OM meters require factory installation only. G2 meters require 510 Adapter, please contact us.)
- Features a signal conditioner with industry standard current loop output.
- Microprocessor-based electronics have extremely low power requirements.
- Accuracy: ±0.1% of reading; Primary Output: Loop (4-20 mA or 0-20 mA) Minimum: 1.5 mA Maximum: 25 mA; Auxiliary Outputs: Single Ended Minimum: 0.1V Maximum: 4.9 V; Pulse Out: Max "OFF" Voltage: 60 V Max. "ON" Current: 200 mA Max. "ON" Voltage Drop: < 0.5 V @ mA; Electrical: Strain Relief: Hubble PG7 Strain Relief Thread: Female 1/2-20 UNF-2B Cable: Belden 9363 (500 Series Only) Cable Length: 20 ft. (6m) provided (500 Series only); Power Supply: 2-wire, loop powered Voltage Supply (Min.): 8.5 VDC Voltage Supply (Max.): 35 VDC; Input Options: Hall Effect, Reed Switch, Open Collector or Low Level Sine Wave; Mounting: On pipe or wall; Frequency: Low Level Coil (LLC): 0.25 - 1000 Hz High Level Low Freq.: 0.25 - 150 Hz High Level High Freq.: 0.25 - 1000 Hz Optically Isolated HLLF: w/2500 V optical isolation Optically Isolated HLHF: w/2500 V optical isolation; Enclosure Rating: NEMA 4X / IP55
32°F to 140°F (0°C to 60°C)
