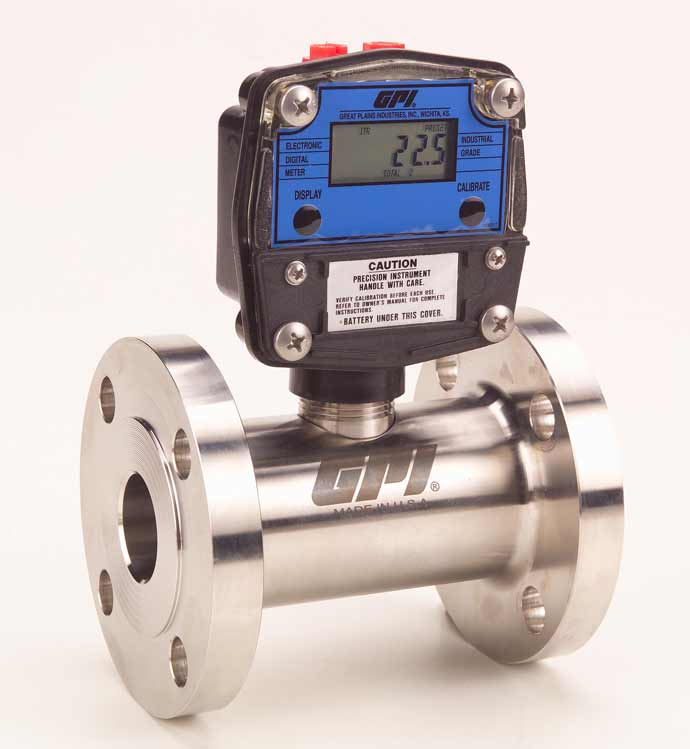

GFP-200S2-5
2" 150 lb ANSI Flange 316SS (limited availability)
Contact us for availability
Rate & Totals G Series - PRECISON METER
Main Specifications
Connection Size: 2"
Connection Type: 150 lb ANSI Flange
Flow Range: 33 - 330 GPM (125.0 - 1250 LPM)
Limited availability
Contact us
Limited availability
Contact us
Pressure Rating: 255 PSI @ 140°F, 275 PSI @ 100°F
Operating Temp With Local Computer: 14°F to 140°F (-10°C to 60°C)
Meter Body Size: 2"
Local/Remote Display: Local
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Flow Meter Type: G Series - PRECISON METER
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Rate & Totals
Benefits & Features: High Accuracy: ± 0.5% (Linearity), Field Serviceable, Cleanable Internals
Extended Flow Range: See pg 4 of manual for details
Max Pressure Drop (at Max Flow in test conditions): 14 PSI
Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5%
Repeatability (based on test conditions): ± 0.1%
Maximum Viscosity: 100 cps**
Recommended Strainer Size: 14 Mesh (1410 Microns)
Max. Particle Size: .056" / 1.410 mm
Operating Temp Without Local Computer or With Remote Computer: -100 to 185°F (-74 to 85°C) [Opt'l]
Housing Material: 316SS (limited availability)<br><br>Contact us for availability
Bearings: PTFE
Shaft: 316SS
Thrust Bearings: 440C Stainless Steel
Rotor: CD4MCu Stainless Steel
Rotor Supports: 316SS
Signal Generator: Not Wetted
Retaining Rings: 302SS/316SS
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Typical K-Factor PPG (PPL): 181
Local Module & Output Signal: Open Collector (NPN) Unscaled Pulse (GG510)
Remote Output: None
Sensor (Pickup): Magnetic
Battery Power: (1) 9V Lithium Battery (5 year)
External Power: 7-30 VDC (optional)
Frequency Range: 100 - 1000 Hz
Totalizing Resets to 0 After Reaching: 99999999
Applications (always check Chemical Compatibility Guide): Chemicals, Water
Not Suitable For Applications: Oils, especially those heavier than 10W (100cps), Fluctuating viscosities**
Piping Notes: If pump, valve, etc. is upstream, need min. 40" Upstream
Minimum Straight Pipe Dia.s: 20" Upstream / 10" Downstream
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds. Line must be full (no air) for proper accuracy.
Connection to Connection Length (OAL): 6.50" (165.1 mm)
Shipping Weight (Approximate): 24 lbs (10.9 kg)
