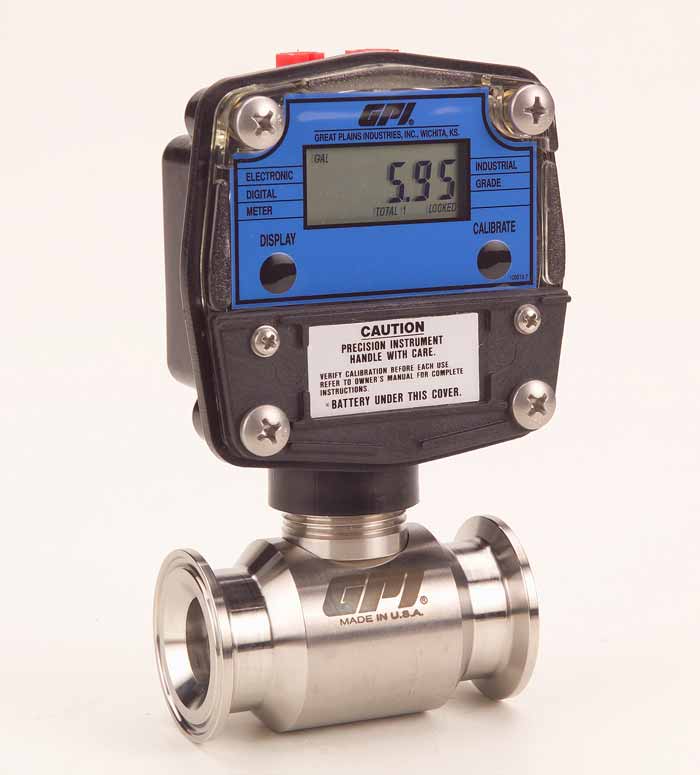

GSCP-75E152-5 GPI 1-1/2" Tri-Clamp Chemical Turbine 316SS Flow Meter
1-1/2" Tri-Clamp 316SS (contact us for availability or see closest new model)
Search for
GSCPS-100-RT40
Rate & Totals G Series - PRECISON METER
Main Specifications
Connection Size: 1-1/2"
Connection Type: Tri-Clamp
Flow Range: 2.3 - 23 GPM (8.7 - 87 LPM)
Limited availability
Please contact us
Limited availability
Please contact us
Pressure Rating: 150 PSI (10.2 Bar)
Operating Temp With Local Computer: 14°F to 140°F (-10°C to 60°C)
Meter Body Size: 3/4"
Body Type: Non 3-A
Local/Remote Display: Local
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Flow Meter Type: G Series - PRECISON METER
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Rate & Totals
Benefits & Features: High Accuracy: ± 0.5% (Linearity), Tri-Clamp Clamp, Field Serviceable, Cleanable Internals, 6 Digit Display - Floating Decimal, Rate of Flow, Batch & Cumulative Totals, Factory Calibrated and Field Calibratable, Choice of Gallons or Liters, Custom Programmable Display (including UOM)
Extended Flow Range: See pg 4 of manual for details
Max Pressure Drop (at Max Flow in test conditions): 4 PSI
Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5%
Repeatability (based on test conditions): ± 0.1%
Maximum Viscosity: 100 cps**
Recommended Strainer Size: 40 Mesh (420 Microns)
Max. Particle Size: .017" / .420 mm
Operating Temp Without Local Computer or With Remote Computer: -100 to 185°F (-74 to 85°C) [Opt'l]
Housing Material: 316SS (contact us for availability or see closest new model)<br><br>Search for<br>GSCPS-100-RT40
Bearings: PTFE
Shaft: 316SS
Thrust Bearings: 440C Stainless Steel
Rotor: CD4MCu Stainless Steel
Rotor Supports: 316SS
Signal Generator: Not Wetted
Retaining Rings: 302SS/316SS
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Local Module & Output Signal: Open Collector (NPN) Unscaled Pulse (GG510)
Remote Output: None
Sensor (Pickup): Magnetic
Battery Power: (1) 9V Lithium Battery (5 year)
External Power: 7-30 VDC (optional)
Frequency Range: 100 - 1000 Hz
Totalizing Resets to 0 After Reaching: 99999999
Typical K-Factor PPG (PPL): 2608
Applications (always check Chemical Compatibility Guide): Pre-process applications where high accuracy is required without 3-A Approval, Water, Beer, Wine
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line must be full (no air) for proper accuracy
Piping Notes: If pump, valve, etc. is upstream, need min. 14" Upstream
Minimum Straight Pipe Dia.s: 7.5" Upstream / 3.75" Downstream
Connection to Connection Length (OAL): 3.25" (82.6 mm)
Shipping Weight (Approximate): 6 lbs (2.7 kg)
Approvals Notes: For 3-A Approved Meters please see GSCPS meters
