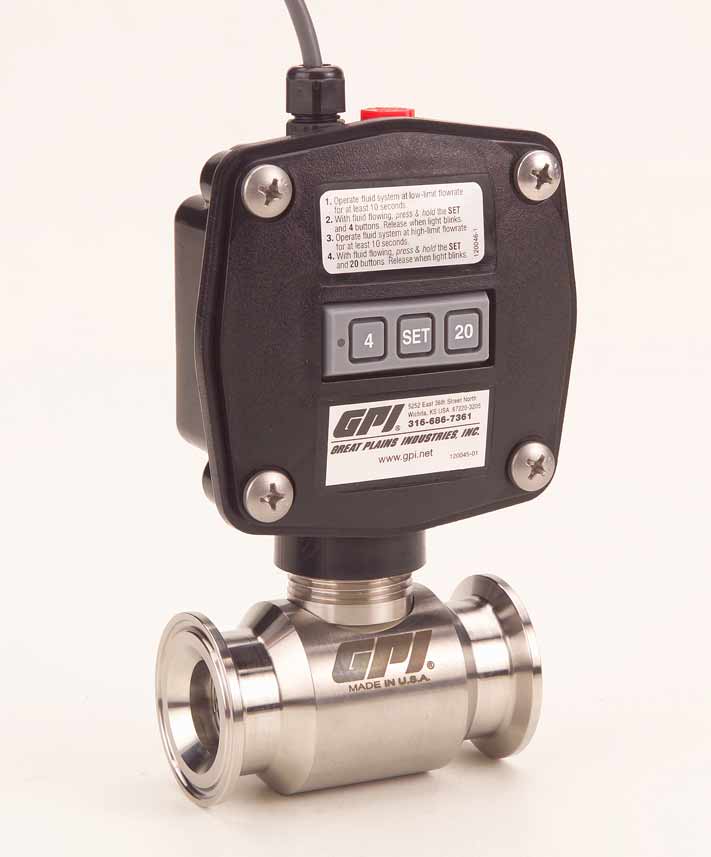

GSCP-75E152-7
1-1/2" Tri-Clamp 316SS (contact us for availability or see closest new model)
Search for
GSCPS-100-RT14
4-20mA Output G Series - PRECISON METER
Main Specifications
Connection Size: 1-1/2"
Connection Type: Tri-Clamp
Flow Range: 2.3 - 23 GPM (8.7 - 87 LPM)
Limited availability
Please contact us
Limited availability
Please contact us
Pressure Rating: 150 PSI (10.2 Bar)
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C)
Meter Body Size: 3/4"
Body Type: Non 3-A
Local/Remote Display: None
Display Type: None
Factory Calibrated For: Water like fluids
Flow Meter Type: G Series - PRECISON METER
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: 4-20mA Output
Benefits & Features: High Accuracy: ± 0.5% (Linearity), Tri-Clamp Clamp, Field Serviceable, Cleanable Internals
Extended Flow Range: See pg 4 of manual for details
Max Pressure Drop (at Max Flow in test conditions): 4 PSI
Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5%
Repeatability (based on test conditions): ± 0.1%
Maximum Viscosity: 100 cps**
Recommended Strainer Size: 40 Mesh (420 Microns)
Max. Particle Size: .017" / .420 mm
Operating Temp Without Local Computer or With Remote Computer: -100 to 185°F (-74 to 85°C) [Opt'l]
Housing Material: 316SS (contact us for availability or see closest new model)<br><br>Search for<br>GSCPS-100-RT14
Bearings: PTFE
Shaft: 316SS
Thrust Bearings: 440C Stainless Steel
Rotor: CD4MCu Stainless Steel
Rotor Supports: 316SS
Signal Generator: Not Wetted
Retaining Rings: 302SS/316SS
Local Computer Calibrations: Factory
Local Module & Output Signal: 4-20mA Transmitter (GA510)
Remote Output: None
Sensor (Pickup): Magnetic
External Power: 2-Wire Loop Powered 8.5-35 VDC
Frequency Range: 100 - 1000 Hz
Typical K-Factor PPG (PPL): 2608
Applications (always check Chemical Compatibility Guide): Pre-process applications where high accuracy is required without 3-A Approval, Water, Beer, Wine
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line must be full (no air) for proper accuracy
Piping Notes: If pump, valve, etc. is upstream, need min. 14" Upstream
Minimum Straight Pipe Dia.s: 7.5" Upstream / 3.75" Downstream
Connection to Connection Length (OAL): 3.25" (82.6 mm)
Shipping Weight (Approximate): 6 lbs (2.7 kg)
Approvals Notes: For 3-A Approved Meters please see GSCPS meters
