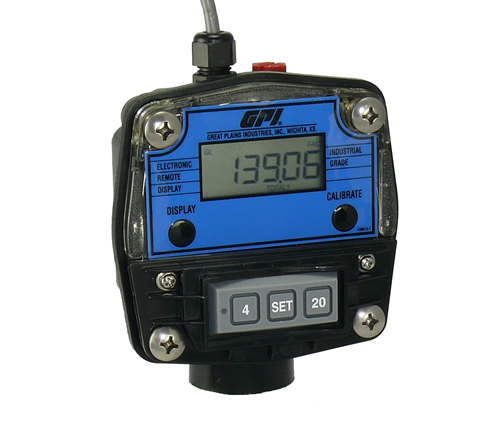

GX510-M
Local Mount Display with 4-20mA Transmitter
(Limited Stock)
$455.00
Features & Benefits
- Local mount 4-20mA Output Transmitter with display Flowrate in GPM 9V Battery not included
- Works with the G, G2, and OM Series Flowmeters. (OM meters require factory installation only. G2 meters require 510 Adapter, please contact us.)
- Features a signal conditioner with industry standard current loop output.
- Can rotate 180° Horizontally and 90° Vertically
- Accuracy: ±0.1% of reading; Primary Output: Loop (4-20 mA or 0-20 mA) Minimum: 1.5 mA Maximum: 25 mA; Auxiliary Outputs: Single Ended Minimum: 0.1V Maximum: 4.9 V; Pulse Out: Max. "OFF" Voltage: 60V Max. "ON" Current: 200 mA Max. "ON" Voltage Drop: <0.5 V @ 200 mA; Strain Relief: Hubble PG7 Strain Relief Thread: Female 1/2-20 UNF-2B Local: No cable provided (510 Series only); Power Supply: 2-wire, loop powered Voltage Supply (Min.): 8.5 VDC Voltage Supply (Max.): 35 VDC; Input Options: Hall Effect, Reed Switch, Open Collector or Low Level Sine Wave; Mechanical Mounting Connections: Unit is mounted to meter body, 1" NPT; Low Level Coil (LLC): 0.25 - 1000 Hz High Level Low Freq.: 0.25 - 150 Hz High Level High Freq.: 0.25 - 1000 Hz Optically Isolated HLLF: w/2500 V optical isolation Optically Isolated HLHF: w/2500 V optical isolation; Enclosure Rating: NEMA 4X / IP55; Calibratable by K-Factory Entry
32°F to 140°F (0° to 60°C)
