Benefits & Features: Excellent for applications with fluctuating or multiple viscosities - No field calibrating required; Accuracy: ± 0.5% Of Reading; Up to 1,000 cps Viscosity; No straight pipe requirements; Bi-directional; PPS Rotors are immune to galling (adhesive wear); PPS Rotors produce less noise than metal rotors; 6 Digit Display - Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Choice of Gallons or Liters; Custom Programmable Display (including UOM)

Max Pressure Drop (at Max Flow in test conditions): Contact us

Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5% (±0.2% Opt'l) @ 3cp

Repeatability (based on test conditions): ± 0.03%

Maximum Viscosity: 1,000 cps

Recommended Strainer Size: 100 Mesh (150 Microns)

Max. Particle Size: .006" / .149 mm

Operating Temp Without Local Computer or With Remote Computer: -4 to 176°F (-20 to 80°C) [Opt'l]

Housing Material: PPS (see new model)<br><br>Search for model<br> OM025O001-821R5G

Bearings: None

Shaft: Carbon Ceramic

Rotor: PPS

Seals: FKM (Viton™)

Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)

LCD Digits: 6

Totalizing Display Starting Increment: 0.01

Typical K-Factor PPG (PPL): Reed: 120 (27), Hall Effect: 405 (107)

Local Module & Output Signal: 4-20 mA Transmitter (GX500)

Remote Output: None

Sensor (Pickup): Reed Switch / Hall Effect*

External Power: 2-Wire Loop Powered 8.5-35 VDC

Totalizing Resets to 0 After Reaching: 99999999

Applications (always check Chemical Compatibility Guide): Metering clean fluids such as water based liquids, including water based acids, bases or neutral salts and most fuels, fuel oils and lubricating liquids. Resistant to chemical attack from all non-aromatic (containing benzene), non-halogenated (containing halogens such as chlorine, bromine) organic solvents at any concentration. Suited for heated water, sea water, water with <1% chlorine up to 176°F.

Not Suitable For Applications: Dirty liquids, strong oxidizing acids, strong bases at high temperatures, oxidizing chemicals in high concentrations, Hydrogen Peroxide, Chlorine and Sodium Hypochlorite

Minimum Straight Pipe Dia.s: None

Desired Straight Pipe Dia.s: None

Application Notes: The meter may be mounted horizontally or vertically but must be mounted, so the rotor shafts are in a horizontal plane (see manual), For viscous liquids, the maximum allowable flow may need to be reduced to ensure the pressure drop across the meter does NOT exceed 15 PSI, Viscosities <3cps, min. flow range is 10% of the maximum flow range, Line must be full (no air) for proper accuracy

Connection to Connection Length (OAL): 4.9" (104mm)

Shipping Weight (Approximate): 8 lbs (3.6 kg)

Approvals Notes: CE Approval is applied when meter is part of a system

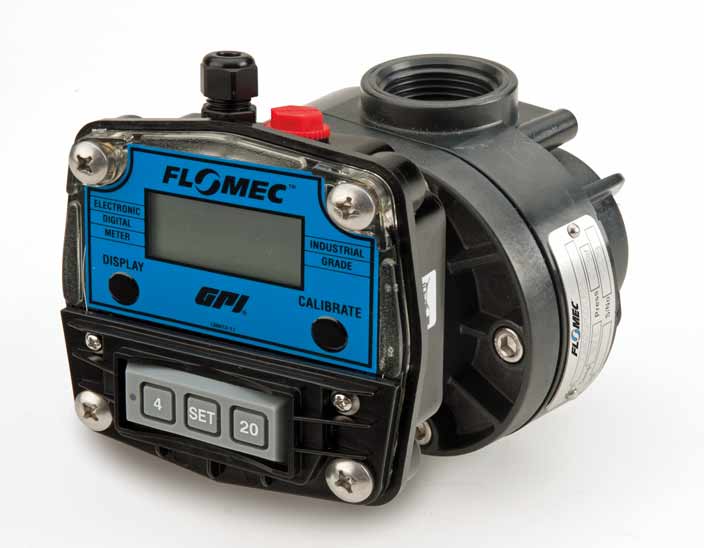

OM025P001-822G6

1" NPT Female PPS (see new model)Search for model OM025O001-821R5G

Rate, Totals & 4-20mA Output OM Series - OVAL GEAR

1" NPT Female PPS (see new model)
