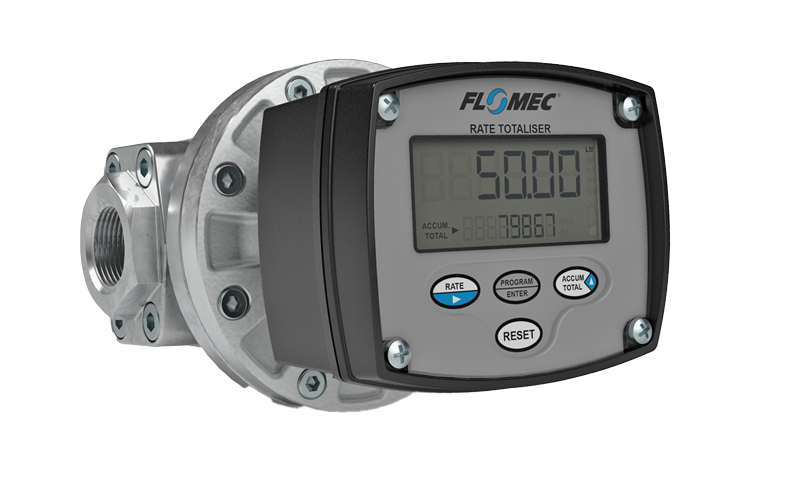

OM025S713-826R7G
1" NPT Female 316LSS
Rate & Totals OM Series - OVAL GEAR - HIGH VISCOSITY
Main Specifications
Connection Size: 1"
Connection Type: NPT Female
Flow Range: 2.6 - 40 GPM (10-150 LPM)
Pressure Rating: 990 PSI (68 Bar)
Operating Temp With Local Computer: 5 to 176°F (-15 to 80°C)
Meter Body Size: 1"
Local/Remote Display: Local
Display Type: Digital LCD (GRN Housing)
Flow Meter Type: OM Series - OVAL GEAR - HIGH VISCOSITY
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Rate & Totals
Benefits & Features: Excellent for applications with fluctuating or multiple viscosities - No field calibrating required; Accuracy: ± 0.5% Of Reading; Up to 1,000,000 cps Viscosity; No straight pipe requirements; Bi-directional; SS Rotors are very stable with increasing temperatures; 6 Digit Display - Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Choice of Gallons or Liters; Custom Programmable Display (including UOM); Back-lighted Display when powered externally
