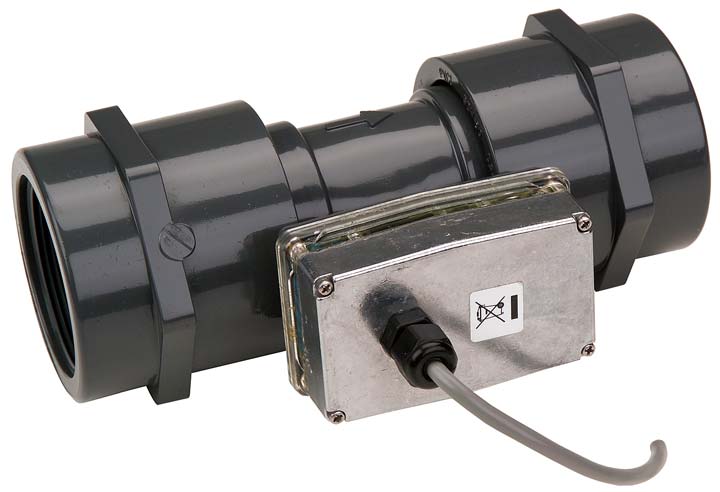

TM200-P
2" Spigot/Slip PVC (see new model)
*** Inquire For TM20SPOXXC ***
Pulse Out TM Series - WATER METER
Main Specifications
Connection Size: 2"
Connection Type: Spigot/Slip
Flow Range: 20 - 200 GPM (76 - 760 LPM)
See new model
Inquire for
TM20SPOXXC
See new model
Inquire for
TM20SPOXXC
Pressure Rating: 225 PSI @ 73°F, 49 PSI @ 140°F
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C) Do not allow to freeze
Meter Body Size: 2"
Body Type: Sch 80
Local/Remote Display: None
Display Type: None
Factory Calibrated For: Water like fluids
Flow Meter Type: TM Series - WATER METER
Warranty Period: 1 Year
Product Type: Pulse Out
Benefits & Features: Factory Calibrated and Field Calibratable, Choice of Gallons or Liters
Accuracy (% of Reading) Factory Calibrated with Computer: ± 3.0%
Operating Temp Without Local Computer or With Remote Computer: 32 to 140°F (0 to 60°C)
Housing Material: PVC (see new model)<br><br>*** Inquire For TM20SPOXXC ***
Bearings: Ceramic
Shaft: Tungsten Carbide
Rotor: PVDF
Signal Generator: Not Wetted
Retaining Rings: 316SS
Local Computer Calibrations: Factory
Typical K-Factor PPG (PPL): 100 (26)
Local Module & Output Signal: Open Collector (NPN) Unscaled Pulse
Remote Output: None
Sensor (Pickup): Magnetic
External Power: 9-35 VDC ~1mA
Applications (always check Chemical Compatibility Guide): Waste Water, Water Treatment, Sub-Metering, Water Based Cooling Systems
Not Suitable For Applications: Fuels, Oils, DI Water, Freezing Medias
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Accuracy can be improved with field calibration, Line must be full (no air) for proper accuracy, Do not allow fluid to freeze inside meter
Piping Notes: Not recommended to connect to metal piping
Minimum Straight Pipe Dia.s: 20" Upstream / 10" Downstream
Connection to Connection Length (OAL): 5.5" (140 mm)
Shipping Weight (Approximate): 1.3 lbs (0.6 kg)
Approvals Notes: See catalog page for full approval specs
