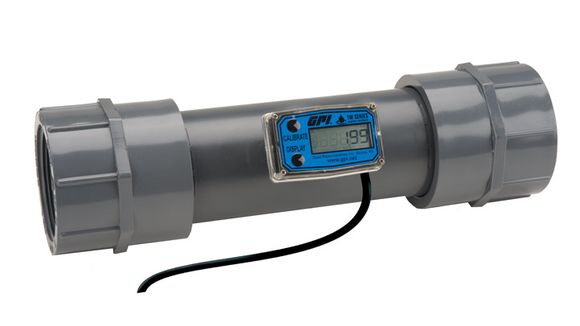

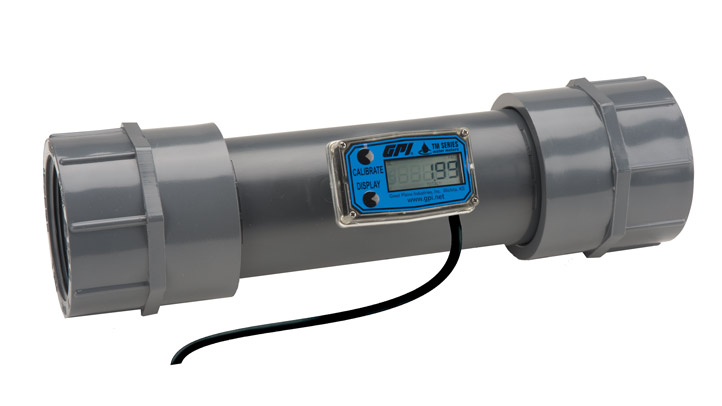

TM300-N-LP
3" NPT Female PVC (see new model)
*** Inquire For TM30NP9GMD ***
Rate & Totals + Pulse Out TM Series - WATER METER
Main Specifications
Connection Size: 3"
Connection Type: NPT Female
Flow Range: 40 - 400 GPM (151 - 1514 LPM)
See new model
Inquire for
TM30NP9GMD
See new model
Inquire for
TM30NP9GMD
Pressure Rating: 225 PSI @ 73°F, 49 PSI @ 140°F
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C) Do not allow to freeze
Meter Body Size: 1/2"
Body Type: Sch 80
Local/Remote Display: None
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Flow Meter Type: TM Series - WATER METER
Warranty Period: 1 Year
Product Type: Rate & Totals + Pulse Out
Benefits & Features: Local Display and Pulse Output, 5-Year Battery Powered, 6 Digit Display - Floating Decimal, Rate of Flow, Batch & Cumulative Totals, Factory Calibrated and Field Calibratable, Choice of Gallons or Liters, Custom Programmable Display (including UOM)
Accuracy (% of Reading) Factory Calibrated with Computer: ± 3.0%
Operating Temp Without Local Computer or With Remote Computer: 32 to 140°F (0 to 60°C)
Extended Flow Range: 30 - 40 GPM, 400 - 600GPM (Accuracy: ± >5% Full Scale)*
Housing Material: PVC (see new model)<br><br>*** Inquire For TM30NP9GMD ***
Bearings: PEEK
Shaft: Stainless Steel
Thrust Washers: Stainless Steel
Rotor: Acetal
Nose Cone: Acetal
Signal Generator: Ferrite
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Typical K-Factor PPG (PPL): 43 (11)
Local Module & Output Signal: Open Collector (NPN) Unscaled Pulse
Remote Output: None
Sensor (Pickup): Magnetic
Battery Power: (2) 3V Lithium Battery (5 year)
Totalizing Resets to 0 After Reaching: 99999999
Applications (always check Chemical Compatibility Guide): Waste Water, Water Treatment, Sub-Metering, Water Based Cooling Systems
Not Suitable For Applications: Fuels, Oils, DI Water, Freezing Medias
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Accuracy can be improved with field calibration, Line must be full (no air) for proper accuracy, Do not allow fluid to freeze inside meter
Piping Notes: Not recommended to connect to metal piping. A strap wrench is recommended for installation, otherwise housing will crack if overtightened.
Minimum Straight Pipe Dia.s: 30" Upstream / 15" Downstream
Connection to Connection Length (OAL): 14.7" (373 mm)
Shipping Weight (Approximate): 7.8 lbs (3.6 kg)
Approvals Notes: See catalog page for full approval specs
