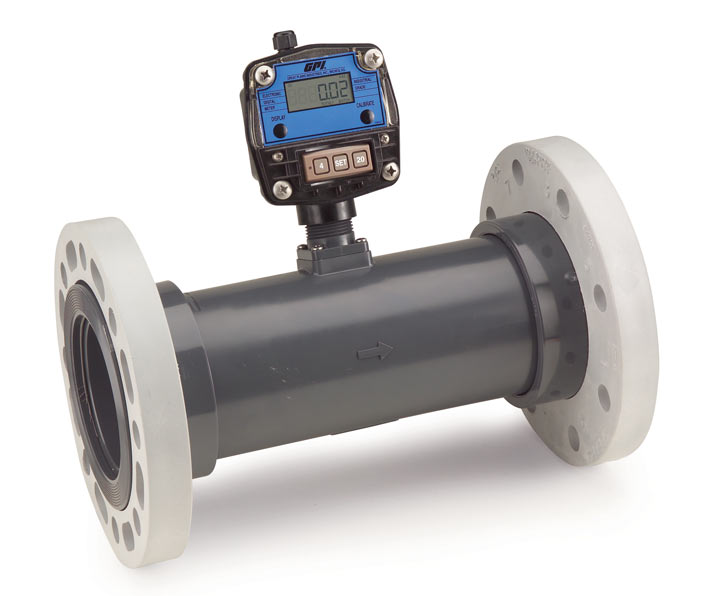

TM400-F-GX
4" 150 lb ANSI Swivel Flange PVC (see new model)
*** Inquire For TM40F42GME ***
Rate & Totals + 4-20mA Output TM Series - WATER METER
Main Specifications
Connection Size: 4"
Connection Type: 150 lb ANSI Swivel Flange
Flow Range: 60 - 600 GPM (227 - 2217 LPM)
See new model
Inquire for
TM40F42GME
See new model
Inquire for
TM40F42GME
Pressure Rating: 225 PSI @ 73°F, 49 PSI @ 140°F**
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C) Do not allow to freeze
Meter Body Size: 4"
Body Type: Sch 80
Local/Remote Display: Local
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Flow Meter Type: TM Series - WATER METER
Std Calibration Reports Included: No
Warranty Period: 1 Year
Product Type: Rate & Totals + 4-20mA Output
Benefits & Features: 6 Digit Display - Floating Decimal, Rate of Flow, Batch & Cumulative Totals, Factory Calibrated and Field Calibratable, Replaceable Turbine Assembly, Choice of Gallons or Liters, Custom Programmable Display (including UOM)
Accuracy (% of Reading) Factory Calibrated with Computer: ± 3.0%
Operating Temp Without Local Computer or With Remote Computer: 32 to 140°F (0 to 60°C) [Opt'l]
Extended Flow Range: 40 - 60 GPM, 600 - 800 GPM (Accuracy: ± >5% Full Scale)*
Housing Material: PVC (see new model)<br><br>*** Inquire For TM40F42GME ***
Bearings: PEEK
Shaft: Stainless Steel
Thrust Washers: Stainless Steel
Rotor: Acetal
Nose Cone: Acetal
Signal Generator: Ferrite
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Typical K-Factor PPG (PPL): 17 (4)
Local Module & Output Signal: 4-20mA Transmitter (GX510)
Remote Output: None
Sensor (Pickup): Magnetic
Totalizing Resets to 0 After Reaching: 99999999
Applications (always check Chemical Compatibility Guide): Waste Water, Water Treatment, Sub-Metering, Water Based Cooling Systems
Not Suitable For Applications: Fuels, Oils, DI Water, Freezing Medias
Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Accuracy can be improved with field calibration, Line must be full (no air) for proper accuracy, Do not allow fluid to freeze inside meter
Piping Notes: Not recommended to connect to metal piping
Minimum Straight Pipe Dia.s: 40" Upstream / 20" Downstream
Connection to Connection Length (OAL): 14.0" (356 mm)
Shipping Weight (Approximate): 13.9 lbs (6.3 kg)
Approvals Notes: NSF/ANSI 61 & 372. See catalog page for full approval specs.
