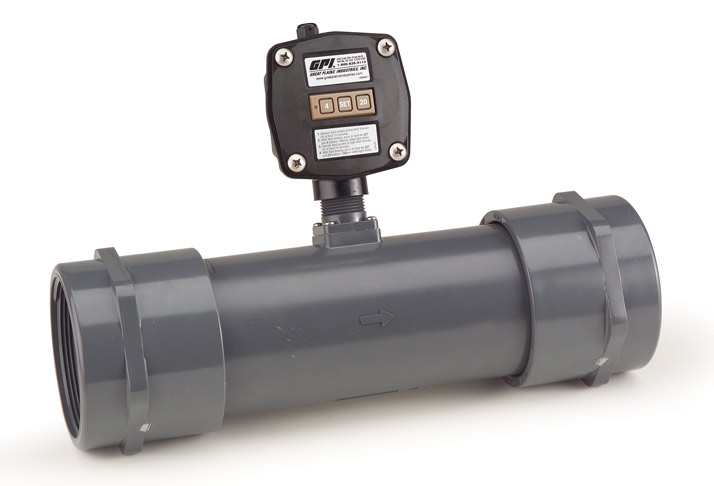

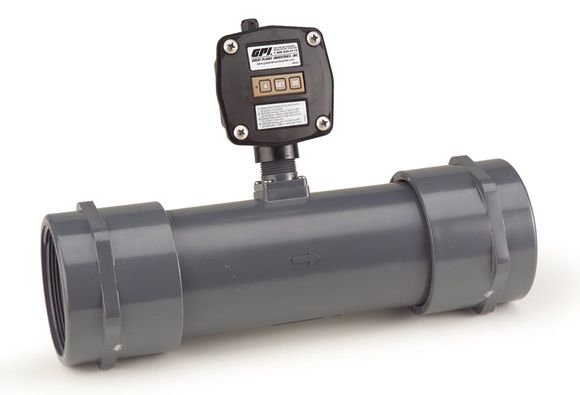

TM400-N-GA
4" NPT Female PVC (see new model)
*** Inquire For TM40N42GME ***
4-20mA Output TM Series - WATER METER
Main Specifications
Connection Size: 4"
Connection Type: NPT Female
Flow Range: 60 - 600 GPM (227 - 2217 LPM)
See new model
Inquire for
TM40N42GME
See new model
Inquire for
TM40N42GME
Pressure Rating: 225 PSI @ 73°F, 49 PSI @ 140°F**
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C) Do not allow to freeze
Meter Body Size: 4"
Body Type: Sch 80
Local/Remote Display: None
Display Type: None
Factory Calibrated For: Water like fluids
Flow Meter Type: TM Series - WATER METER
Std Calibration Reports Included: No
Warranty Period: 1 Year
Product Type: 4-20mA Output
Benefits & Features: Factory Calibrated and Field Calibratable, Replaceable Turbine Assembly, Choice of Gallons or Liters
Accuracy (% of Reading) Factory Calibrated with Computer: ± 3.0%
Operating Temp Without Local Computer or With Remote Computer: 32 to 140°F (0 to 60°C) [Opt'l]
Extended Flow Range: 40 - 60 GPM, 600 - 800 GPM (Accuracy: ± >5% Full Scale)*
Housing Material: PVC (see new model)<br><br>*** Inquire For TM40N42GME ***
Bearings: PEEK
Shaft: Stainless Steel
Thrust Washers: Stainless Steel
Rotor: Acetal
Nose Cone: Acetal
Signal Generator: Ferrite
Local Computer Calibrations: Factory
Typical K-Factor PPG (PPL): 17 (4)
Local Module & Output Signal: 4-20mA Transmitter (GA510)
Remote Output: None
Sensor (Pickup): Magnetic
Applications (always check Chemical Compatibility Guide): Waste Water, Water Treatment, Sub-Metering, Water Based Cooling Systems
Not Suitable For Applications: Fuels, Oils, DI Water, Freezing Medias
Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Accuracy can be improved with field calibration, Line must be full (no air) for proper accuracy, Do not allow fluid to freeze inside meter
Piping Notes: Not recommended to connect to metal piping. A strap wrench is recommended for installation, otherwise housing will crack if overtightened.
Minimum Straight Pipe Dia.s: 40" Upstream / 20" Downstream
Connection to Connection Length (OAL): 17.0" (432 mm)
Shipping Weight (Approximate): 10.1 lbs (4.6 kg)
Approvals Notes: NSF/ANSI 61 & 372. See catalog page for full approval specs.
