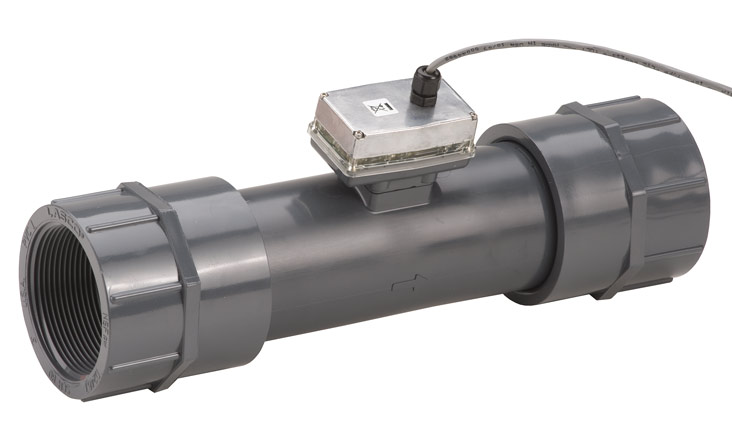

TM400-N-P
4" NPT Female PVC (see new model)
*** Inquire For TM40NPOXXE ***
Pulse Out TM Series - WATER METER
Main Specifications
Connection Size: 4"
Connection Type: NPT Female
Flow Range: 60 - 600 GPM (227 - 2217 LPM)
See new model
Inquire for
TM40NPOXXE
See new model
Inquire for
TM40NPOXXE
Pressure Rating: 225 PSI @ 73°F, 49 PSI @ 140°F**
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C) Do not allow to freeze
Meter Body Size: 4"
Body Type: Sch 80
Local/Remote Display: None
Display Type: None
Factory Calibrated For: Water like fluids
Flow Meter Type: TM Series - WATER METER
Warranty Period: 1 Year
Product Type: Pulse Out
Benefits & Features: Factory Calibrated and Field Calibratable, Choice of Gallons or Liters
Accuracy (% of Reading) Factory Calibrated with Computer: ± 3.0%
Operating Temp Without Local Computer or With Remote Computer: 32 to 140°F (0 to 60°C)
Extended Flow Range: 40 - 60 GPM, 600 - 800 GPM (Accuracy: ± >5% Full Scale)*
Housing Material: PVC (see new model)<br><br>*** Inquire For TM40NPOXXE ***
Bearings: PEEK
Shaft: Stainless Steel
Thrust Washers: Stainless Steel
Rotor: Acetal
Nose Cone: Acetal
Signal Generator: Ferrite
Local Computer Calibrations: Factory
Typical K-Factor PPG (PPL): 17 (4)
Local Module & Output Signal: Open Collector (NPN) Unscaled Pulse
Remote Output: None
Sensor (Pickup): Magnetic
External Power: 9-35 VDC ~1mA
Applications (always check Chemical Compatibility Guide): Waste Water, Water Treatment, Sub-Metering, Water Based Cooling Systems
Not Suitable For Applications: Fuels, Oils, DI Water, Freezing Medias
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Accuracy can be improved with field calibration, Line must be full (no air) for proper accuracy, Do not allow fluid to freeze inside meter
Piping Notes: Not recommended to connect to metal piping. A strap wrench is recommended for installation, otherwise housing will crack if overtightened.
Minimum Straight Pipe Dia.s: 40" Upstream / 20" Downstream
Connection to Connection Length (OAL): 17.0" (432 mm)
Shipping Weight (Approximate): 9.2 lbs (4.2 kg)
Approvals Notes: NSF/ANSI 61 & 372. See catalog page for full approval specs.
